the catalogue #134

1970 Farrelly  Twin Fin    6 ft 1 " #134



MANUFACTURE
MANUFACTURER: Farrelly Surfboards, 230 Harbord Road Brookvale Sydney
SHAPER:  Unknown (possibly Warren Cornish ( - see below)
DESIGN: Twin Fin 1
DESIGNERS: Mike Eaton / Rolf Arness / Corky Carroll / David Nuuihwa, all USA

SPECIFICATIONS
CONSTRUCTION
Foam blank with 1/8 inch redwood/glueline stringer?, red pigment volan laminate with 1/2 inch rail lap.
Foil  deck to tail patch. Fin patches?
DIMENSIONS
Length :
6
ft
  1
inches

Width :
 19 1/8
inches
Wide Point :
 +ve 6 .5
inches
Nose :
 13 .75
inches?
Tail :
 13 .75
inches
Thickness :
 3
inches
Pod :
 7
inches
Nose Lift :
  inches
Tail Lift :
  inches
Weight :
  kilos
Volume :
  litres
Round tail :
 7
inches
+ve 1 .5
inch

FEATURES
Nose: Pin
Tail:  round
Deck:   S-deck, domed
Bottom:  flat,
Rails: Down rail with hard edge, nose to tail
Rocker: Two phase - Marked nose lift to wide point, then flat to tail

FINS
Two...
Left
6 1/4 inch x 4 inch base @ 5 1/2 inches.
Leg rope hole
Right
6 3/4 inch x 4 inch base @ 5 1/2 inches.
Clear laminate with fin patch
High aspect Greenough
Toed in to nose, but tip-out not symetric, probably due to non-expert repairs
Note the fins, probably original, have been heavily damaged, possibly trimed and reinforced.


DECOR
DECALS
Deck

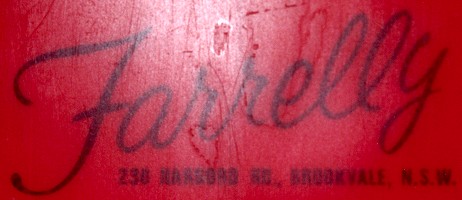

Farrelly/address - black script at sweet spot.
See right
Bottom:
MARKINGS
Deck:
Bottom:
COLOUR
Deck: Red pigment laminate
Bottom: Red pigment laminate

NOTES
BOARD HISTORY
Photographs and dimensions, January 2004.
Thanks to Scott Anderson.
DESIGN HISTORY
The US design (Corky Carroll, Mike Eaton , Rolf Aurness and David Nuuhiwa) was directly imported by Tom Hoyle to Bennett Surfboards, Brookvale in late 1970.
Concurrently, Terry Fitzgerald and Greg Hodges "built two five-sixes" from design details culled from negotiations between Shane Surfboards and Corky Carroll, post Johanna World Contest, 1970 (M.3)
The design quickly dominated 50% of the Sydney market, notably McCoy Surfboards.
Usually sub 6 ft x 20" with 10" diamond pod. Glue line stringer.
Fin size, shape and placement varied.
MANUFACTURER HISTORY
At a cost of $125.00, it was a premium product trading on Midget Farrelly's designs and an  immaculate finish that set the benchmark for the rest of the industry.
REFERENCES
Other Twin fin I's :
# 106   Pat Morgan
# 71  Walsh 5 ft 4"
#161 Hansen 6 ft 1''

Twin fin II's

# 40

Other Farrelly Boards
#46 1969 Farrelly, Square tail  6 ft 4"
#214 1970 Farrelly Diamond Tail 6 ft 3''
#54 1971  Farrelly Pop-out 5ft 5"
#34 1972  Midget Farrelly, Coolite 4 ft 10" Rubber fin
Books:
1. Nat's History 0f Surfing    page 106.
Magazines.
Articles:
1. Tracks  Number 2 Summer 1970?
Twin fin articles featuring Tom Hoye at Bennett Surfboards and Terry Fitgerald at Shane Surfboards. Photographs from these articles reproduced in Nat Young's History of Surfing, page 106. See 1 above. Inexplicably these articles did not appear in The Best of Tracks (Volume 1) design section.
2. Mick Mock : "The Summer Millionaire (Shane Steadman)"
in Deep Vol 4 #4 Winter 1999 pages 50 - 61
- includes photographs
3.  Phil Jarrett : "The Sultan of Speed" (Retrospective 1960 - 1999)
in The Australian Surfers Journal Vol 1 # 2 Autumn 1999 page 28 - 45.
Twin fin I page 42
4. Surfing World  Vol 14 # 6
- cover shot of Terry Fitzgerald (Shane Surfboards), Mark Warren (McCoy Surfboards) and tails/fins.
Film:

1.  John Severson : Pacific Vibrations USA 1971
- footage of Corky Carroll, Twin fin I/Hobie Surfboards
2.  Bob Evans : Family Free 1971
- Col Smith and Mark Warren ride Twin fin I/McCoy Surfboards
 CONDITION: 4



Board # 5

Receipt No. 22
28 November 1969



Warren Cornish at Farrelly Surfboards,
230 Harbord Road Brookvale Sydney
circa June 1970
Photograph from
Pacific Longboarder
Vol 6 No. 3 page 39

January 2003
Note similarities in template to #214.
