the catalogue #225

1970  John Arnold - Wayne Lynch International Involvment Model  6 ft 4"
#225



MANUFACTURE
MANUFACTURER: John Arnold Surfboards, 142 Gawler Place Adelaide South Australia
SHAPER:  Wayne Lynch (Wayne Dale - Sig Kwiatkowski)
DESIGN: Wayne Lynch Involvment Model
DESIGNER: Wayne Lynch

SPECIFICATIONS
CONSTRUCTION
Foam blank with red Glue-line stringer, volan glassed with tint/pigment and 2/3 deck patch.
Slotted wedge adjustable fin box and companion fin.
DIMENSIONS
Length:
6
feet 4 inches
Width:
21.25
inches
Wide Point:
 +ve 5
inches
Nose :
 17
inches
Tail :
 15 .5
inches
Thickness:
3 .25
inches
Pod:
0
inches
Nose/L:

inches
Tail/L:

inches
Weight:

kilo
Volume:

litres
Other






FEATURES
Nose: round
Tail:  round
Deck:   rolled
Bottom:  slight roll
Rails: 50/50 tending down in the tail
Rocker:

FIN
8.5" x 6''b x 9.5'' span
Black, moulded "glass filled nylon".
Adjustable in a slotted wedge.
Rear post-production leg-rope hole.

Finbox : 12'' @ 5.5''

When new, the system used several plastic locking clips that filled the exposed section.
The fin and box probably manufactured by Simplex Fins, South Australia, see below.
Similar designs were also used by Waveset and Guidance Systems in California, circa 1969-1970.
The design was short lived and was replaced with now universally adopted Bahne box.


DECOR
DECALS
Deck: John Arnold Surf Machines, Adelaide South Australia
- Wayne Lynch International Involvment (sic)
Black at sweet spot.
Badly de-laminated, see
alternative legible decal below.
'Made in Australia' in black map, on tail.
Bottom:
MARKINGS
Deck: 6' 4"  WAYNE LYNCH  2416 - pencil near tail.
Bottom:
COLOUR

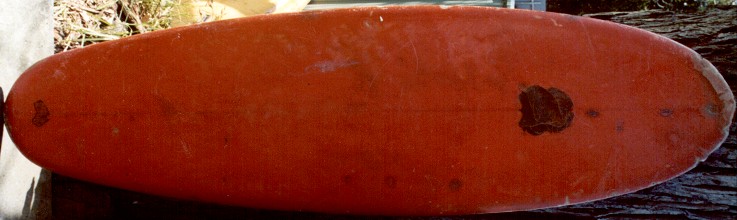

Deck: laminated red with darker 2/3rd volan deck patch
Bottom: clear with 1.5'' red laminated rail overlap and black 'pinlines'.

NOTES
BOARD HISTORY:
Located in the Bronx, New York City, USA, the board was purchased from online in 2006 and despatched to Peter Hitchen, Martha's Vineyard, Mass.
Peter kindly brought the board to Australia in December 2006.
Many thanks to Calliope (the Bronx) and Peter.
DESIGN HISTORY:
John Arnold Surfboards
John Arnold Surfboards started in South Australia in the late 1950s and, principally through licensing O’Neill Wetsuits (USA) and Golden Breed clothing (USA), was a major company in the 1960s Australian surf industry.
An advertisement for John Arnold Surfboards, late 1969 lists the shapers as Wayne Lynch, Wayne Dale and Sig Kwiatkowski.
See below.
I assume Dale or Kwiatkowski were responsible for the majority of the Involvment production boards as Wayne Lynch had a number of interstate competitive commitments and was also travelling the world with film producer, Paul Witzig.
An J.A. advertisment late 1970 notes the 'designers' as Wayne Lynch and Wayne Dale and they are available in "All states of Australia -  East and West coast USA - England - France". (reference?)
A Klemm-Bell Surfboards, Torquay, advertisement for mid-late 1971 offers "Wayne Lynch Hand Shapes and Designs". (reference?)
Presumably at this time the contract with John Arnold Surfboards had ceased.
Wayne Lynch subsequently shaped boards for Rip Curl Surfboards, Torquay.(reference?)

Wayne Lynch and
Involvment model by John Arnold Surfboards, 1968.

Wayne Lynch
Said to have revolutionised backhand surfing, Wayne Lynch won the Bells Beach Junior Title 1966, 1967, 1968 and 1969.
The Australian Junior Men’s Title 1967, 1968, 1969 and 1970; and the European Title in 1968.
After an outstanding competitive record as a junior, he began shaping circa 1967, see below.
He starred in Paul Witzig’s films Evolution (1968) and Sea of Joy (1971).
In Evolution (shot over a period of 12-18 months), Lynch rides at least seven different boards, illustrating the rapid design changes in this period.

REFERENCES
Other John Arnold Surfboards
#103 1969 Wayne Lynch Involvment 7ft 9''
Books
Carter (1968) Cover photograph, with Keith Paull (going right).
Paull was the 1968 Australian champion, Wayne Lynch the Junior champion.
Nat’s Nat (1998) page 177, and following.
Magazine Ad : Surf International 1969 Vol 2 #6
Film
Evolution (1968) Paul Witzig
Sea of Joy (1971) Paul Witzig
On Any Morning  (1974)  David Sumpter
Fall Line (1979)  Nat Young

CONDITION: 5






John Arnold Surf Machines,
Adelaide South Australia

Wayne Lynch International Involvment


Decal courtesy of stanleys surfcrazy logo library

 Finish coating: John Arnold Surf Machines - Wayne Lynch International Involvment Model,
Adelaide, South Australia, circa 1969.

Finish coat.

But it's inside that counts.
And it counts, when groovy guys like Wayne Lynch, Wayne Dale and Sig Kwiatkowski get together with the J.A. team.
Time you started counting...into the 4th dimension with a Wayne Lynch 'involvment' model or a J.A. surf machine.

Ask at your local surf shop or contact

John Arnold's Surf Shop

142 Gawler Place, Adelaide, 5000 Phone 23 5505

Surf International
Volume 2 Number 6, circa 1969, page 2.


 Simplex I Fin system.
No bolts, keys or any hardware.
So simple, the fin can be changed in seconds.
The precision box allows six positions over a five inch adjustment span.
Three fin shapes in glass filled nylon, colours green, blue, red, yellow, white and black.
SIMPLEX Fin Systems
142 Gawler Place, Adelaide, 5000.
 Phone 23 5505

Surf International
Magazine

Volume 3 Number 3, circa 1970, page 2.


Adjustable fin and fin box with fore and rear locking clips.
Burford Surfboards, South Australia, circa 1969.

Contributed, with thanks by Mike Brown, Adelaide, January 2007.
Mike noted
The Burford fin box and fin has no stampings.
I reckon Don had these made up.
My Arnold/Lynch boards which have the same setup are identical, but some fins have 'Made in Australia', others haven't.


Early Wayne Lynch shaped board, (possibly the first) circa 1967.
Psychedelic art work by Simon Buttershaw, nose script reads Are You Experienced? (Jimi Hendrix, 1967)
7 ft x 23 inches @ -ve12 inches
Nose 17 inches. Tail 17.75 inches
Features : Full vee-bottom, deepest at tail. Chamfered diamond tail.
Note : Small square tail is obscured by grass.
Fin appears to be in a box (possibly Fins Unlimited), or reset, or non-original.
Photograph by Bob Smith; cropped and digitally manipulated from
Australian Long Boarding Number 19 January/February 200? page 59.

 A  RARE   1970  JOHN ARNOLD  " WAYNE  LYNCH  INTERNATIONAL  INVOLVMENT "    MODEL  SURFBOARD  FROM  ADELAIDE  SA

INVOLVMENT  SPELT  INCORRECTLY  ON  DECAL    WHICH WAS  LATER  CHANGED  ON  FUTURE DECALS

MEASURES  6' 2" X 21" X 3"    DESIGNED  BY  WAYNE    SHAPED  BY  SIG  KWIATKOWSKI

EXCELLENT  RARE  AGAIN  SIMPLEX  FIN SYSTEM   WITH TABS


Unusual J.A. Surf Machine Dragon (?) decal and board photographs,
 thanks to Mike Brown  South Australia, July 2020.



Markings:
Wayne Lynch 6'8"
2001 BC







Simplex Fin-box.



1969 J.A. Surf Machines Wayne Lynch International Involvment  6ft 8"





Simplex Fin-box.
The fin appears to be slightly ground down.

Surfing
Volume 16 Number 12 December 1980
Photograph by Aaron Chang.
Autographed, 2005.
(Wayne's only international magazine cover photograph?)




Surfing World
v10 n6 1968 June

Wayne Lynch
Surfing World

v10 n6 1968 June, page 5.
